Tunnel air inlet

Introduction:

The biggest feature of tunnel air intakes is their high ventilation capacity. They can be used as air intakes for tunnel ventilation systems or for additional ventilation in summer. Both air flow rate and airflow direction can be easily adjusted. In cold seasons, the air intake baffle can be reliably closed. And the baffle has undergone insulation treatment to reduce temperature loss.
The tunnel air inlet is very suitable for lightweight wall buildings, as you can install the inlet on the inner wall by threading screws through the flange.

Request a Quote

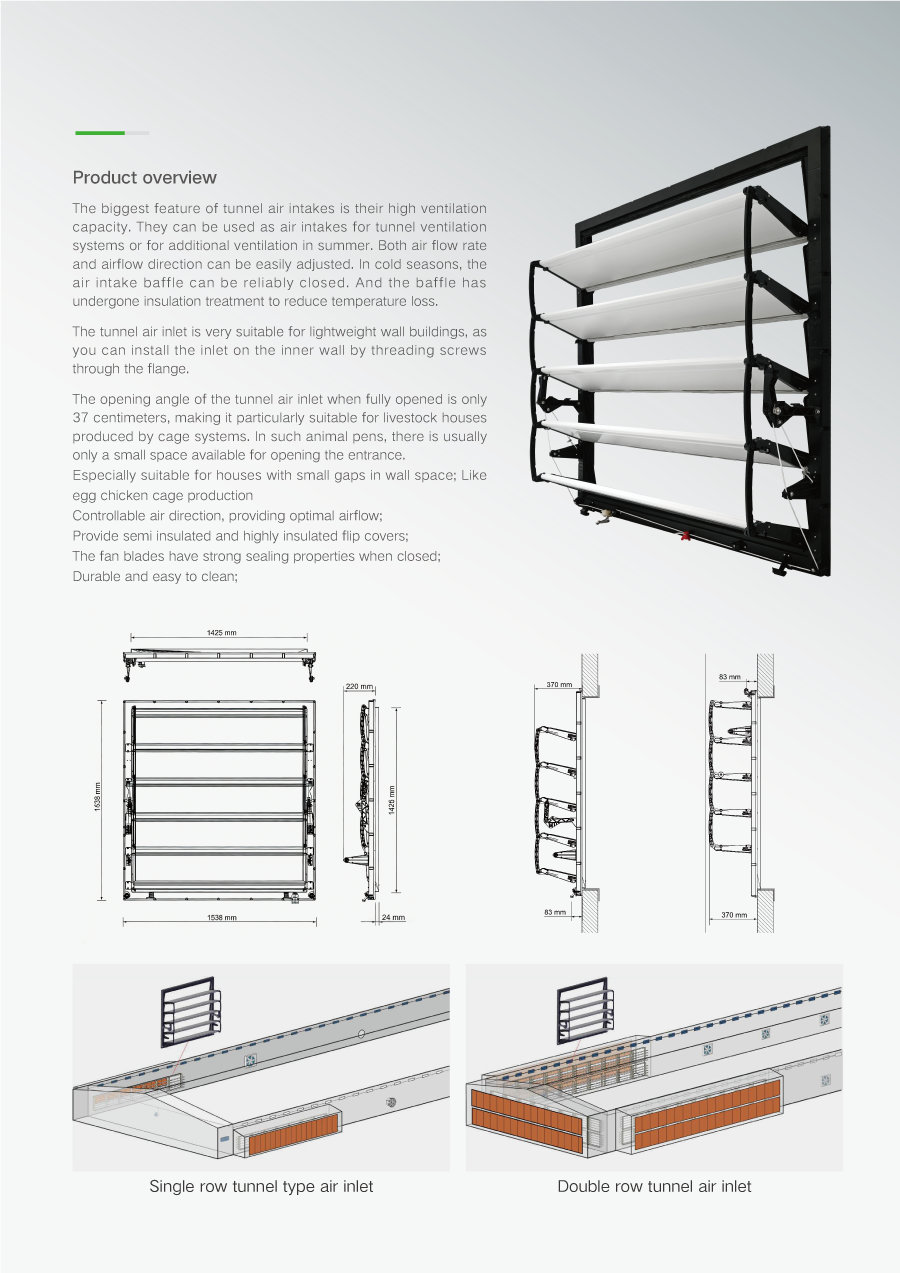

Description

The biggest feature of tunnel air intakes is their high ventilation capacity. They can be used as air intakes for tunnel ventilation systems or for additional ventilation in summer. Both air flow rate and airflow direction can be easily adjusted. In cold seasons, the air intake baffle can be reliably closed. And the baffle has undergone insulation treatment to reduce temperature loss.
The tunnel air inlet is very suitable for lightweight wall buildings, as you can install the inlet on the inner wall by threading screws through the flange.

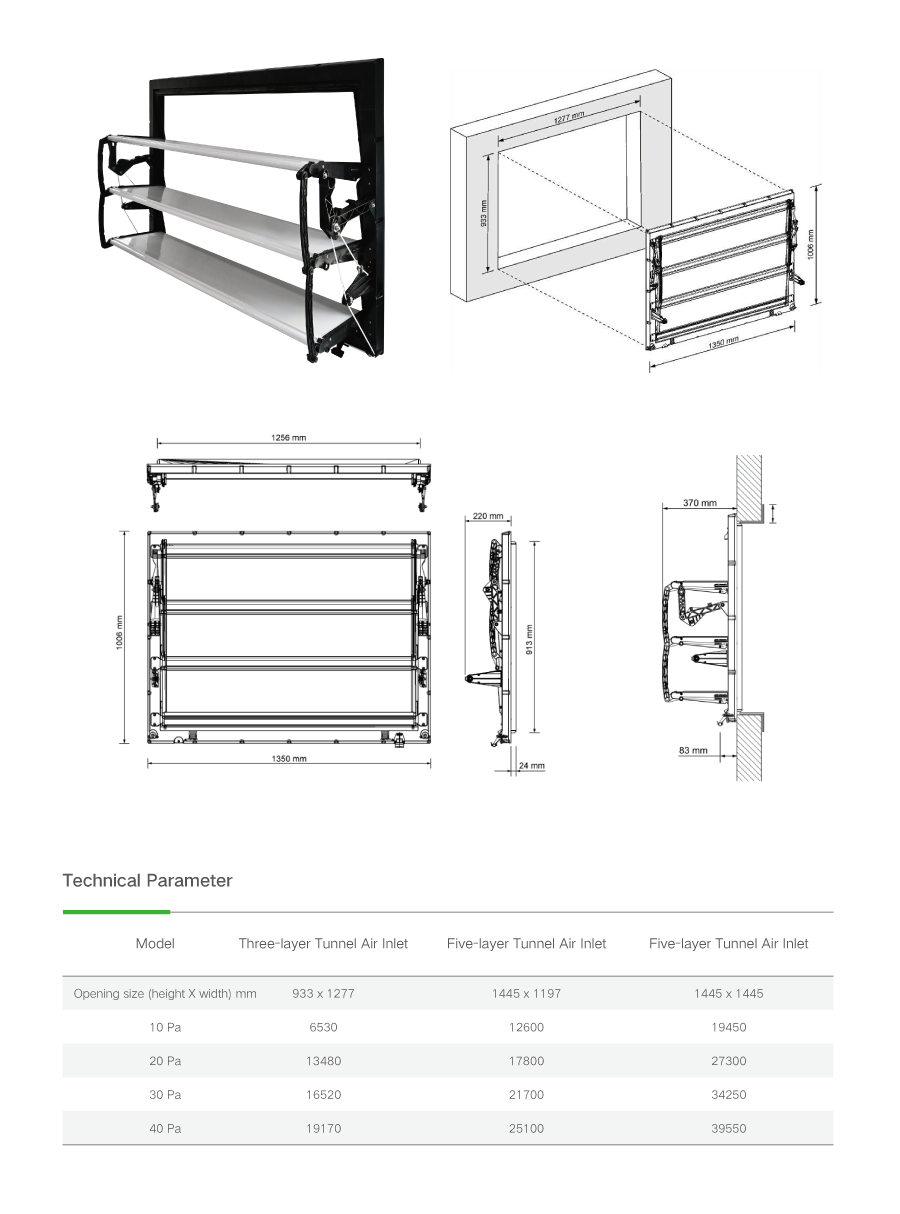

Tech Specs

The opening angle of the tunnel air inlet when fully opened is only 37 centimeters, making it particularly suitable for livestock houses produced by cage systems. In such animal pens, there is usually only a small space available for opening the entrance.
Especially suitable for houses with small gaps in wall space; Like egg chicken cage production
Controllable air direction, providing optimal airflow;
Provide semi insulated and highly insulated flip covers;
The fan blades have strong sealing properties when closed;
Durable and easy to clean;

Product Display
