High-Efficiency Evaporative Cooling Pads for Greenhouses and Livestock Farming

What is an evaporative cooling pad?

Evaporative cooling pads are the core component of direct evaporative cooling systems. These pads are made from specially engineered materials—most commonly highly absorbent cellulose kraft paper—and are chemically treated with wetting agents and preservatives to ensure long-term durability. The paper is corrugated at specific angles and bonded together to form a robust, self-supporting structure with a large surface area that facilitates water evaporation.

As exhaust fans draw hot, dry outdoor air through these saturated pads, the water evaporates. This evaporation process absorbs heat energy from the air, naturally cooling and humidifying the incoming air without the need for an external energy source. It is a natural cooling process now applied in modern agriculture.

I. Cooling Performance

Modern evaporative cooling pads can achieve saturation efficiencies of 80% or higher. In practical terms, under typical Midwestern U.S. summer conditions, this means the intake air temperature can be reduced by 5 to 15°F (approx. 2.7 to 8°C), with a typical daytime wet-bulb depression of 14 to 20°F (approx. 7 to 11°C). In hotter, drier climates, the cooling effect is even more pronounced.

Cooling efficiency depends on several factors: intake air velocity, pad thickness, and ambient temperature and humidity. With proper system design, these pads can consistently and effectively lower temperatures to levels required for livestock and crop growth.

II. High-Quality Cellulose Structure

Premium cooling pads are manufactured using saturation-grade kraft paper that is highly absorbent and stabilized with resins. The cellulose paper undergoes a special impregnation process to ensure the pads possess the following characteristics:

– Self-supporting and robust—maintaining structural integrity even when fully saturated

– Decay and insect resistant—treated with preservatives to extend service life

– Highly absorbent—allowing water to distribute quickly and evenly across the pad surface

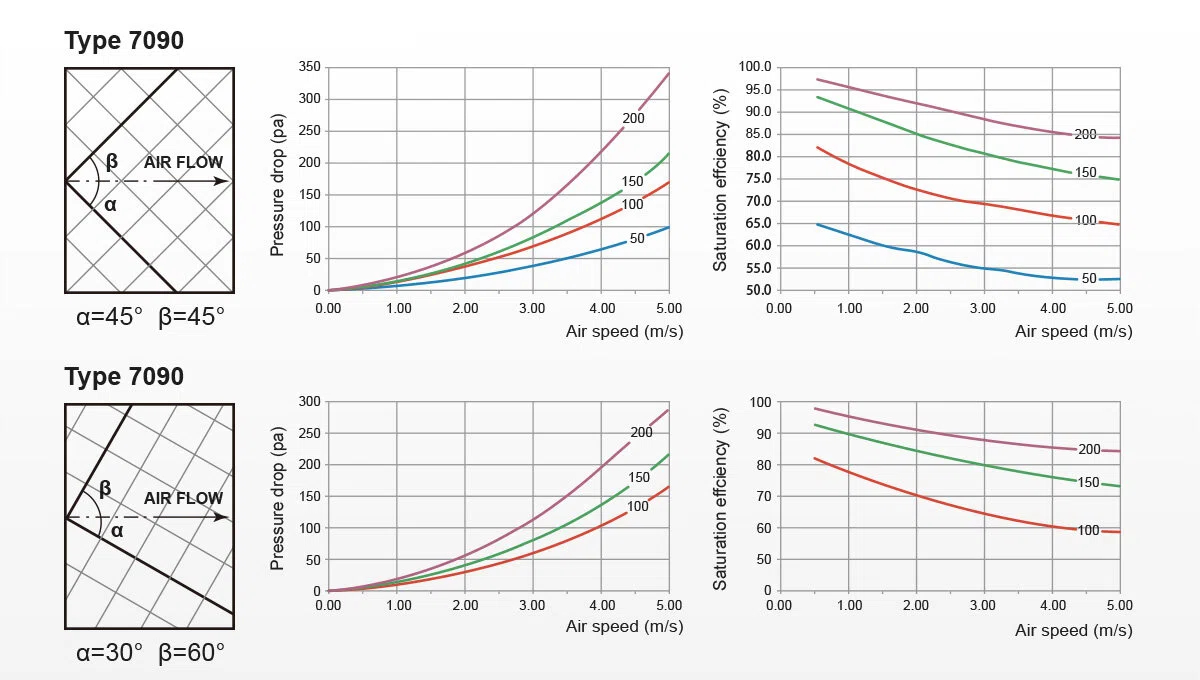

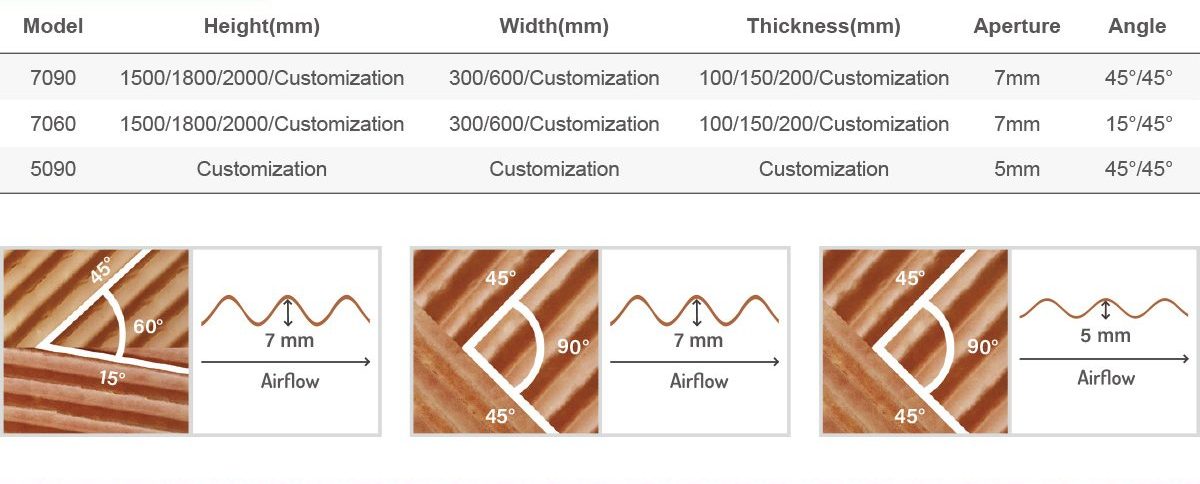

The corrugated design utilizes varying flute angles—typically a combination of steep angles (60°/45°) and shallow angles (30°/15°)—bonded together in a cross-fluted pattern. This unique design continuously directs more water to the air-intake side of the cooling pad—the area where the air is hottest and driest, and where cooling is most needed.

Material Selection—Choosing the Right Media for Your Needs

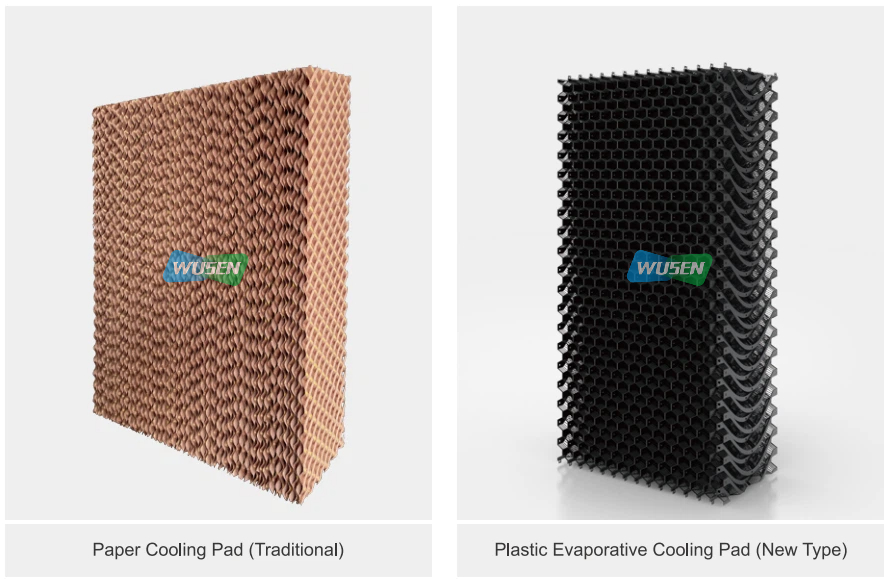

We offer two primary material categories to meet diverse operational requirements and budget considerations:

Cellulose Kraft Paper—The industry benchmark for evaporative cooling media. Made from high-quality, water-absorbent kraft paper, this material delivers exceptional cooling efficiency and long-lasting structural stability.

Plastic (Polypropylene/PP)—A robust, durable alternative designed for harsh environments. Polypropylene cooling pads offer superior mechanical strength and excellent resistance to chemical corrosion and fungal growth; they are also quick and easy to clean. This material is particularly well-suited for facilities with poor water quality or those requiring frequent cleaning and disinfection.
